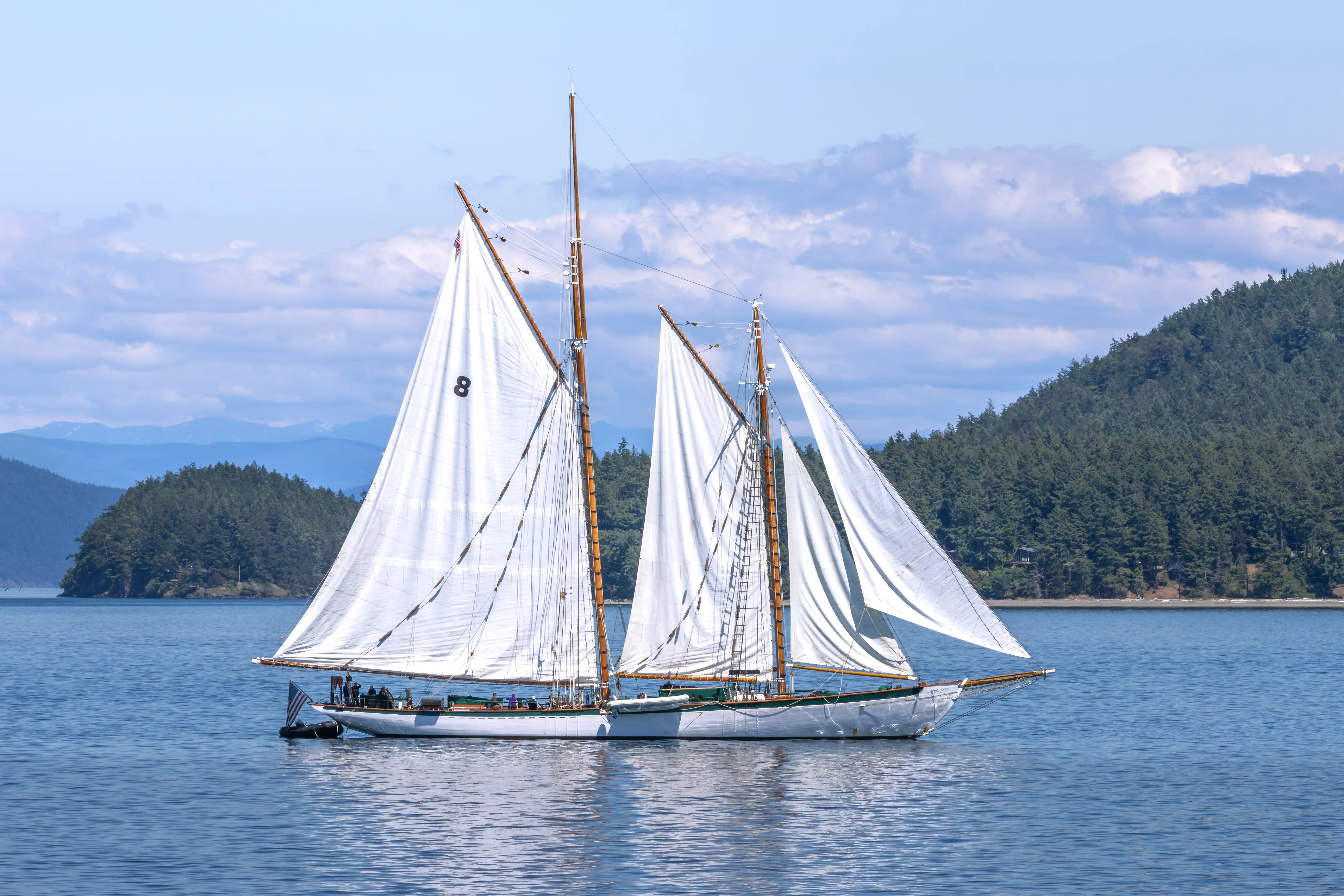

Your essential guide to rigging a gaff sail

Once common on fishing boats, cargo vessels, and coastal cruisers, gaff sails played an important role in sailing for centuries before the creation of modern rigs. Many traditional and classic boats still have a gaff sail, as they remain popular for their unique look and sailing characteristics.

Understanding how to rig a gaff sail is essential if you’re interested in traditional sailing or restoring a historic vessel. While gaff sail rigging can look more intimidating than modern sail setups, it’s reasonably straightforward once you understand the main features and what they do.

In this guide to rigging a gaff sail, we share the history of the gaff rig. We’ll look at how to rig a gaff sail and compare it with modern sail designs. We’ll also highlight the advantages that make gaff-rigged boats popular among sailing enthusiasts.

What is a gaff sail?

A gaff sail is a traditional four-sided fore-and-aft sail supported by a horizontal spar known as a gaff along its upper edge. Unlike the triangular sails commonly seen on modern yachts, a gaff sail creates a larger sail area without the need for an extremely tall mast. Gaff sails have been a popular choice for fishing boats, cargo vessels, and cruising craft for centuries.

The mast provides vertical support for the rig, while the gaff extends diagonally from the mast to support the top edge of the sail. At the bottom, the boom helps to control the foot of the sail and its angle to the wind.

The sail is raised and adjusted using two separate lines:

• The throat halyard, which lifts the forward end of the gaff near the mast
• The peak halyard, which raises the outer end of the gaff

These components enable sailors to shape the sail to changing wind conditions and achieve efficient performance across various points of sail.

History of the gaff rig

The gaff rig was created at a time when sailors were trying to work out how to harness wind power without relying on increasingly taller masts. By the 17th century, fore-and-aft sail designs had become more common in Europe, and the addition of the gaff spar meant vessels could carry a larger sail area with a fairly compact rig. This was especially useful for working boats that needed power, versatility, and ease of handling.

For centuries, the gaff rig could be seen in ports and harbours across Britain, Europe, and North America. Fishing fleets, cargo carriers, pilot boats, and coastal trading vessels used the design as it offered excellent performance in variable conditions and could be adapted to many different hull types. As this rig type could generate sail power without requiring extremely tall spars, it was especially useful for vessels sailing close to shore, where bridges, harbours, and changing weather conditions could be challenging.

The gaff rig became particularly popular during the 18th and 19th centuries and appeared on a wide range of vessels, from small cutters and sloops to large schooners. For commercial operators, the rig balanced speed, cargo capacity, and manageable operating costs, while sailors appreciated its flexibility in adjusting sail shape to suit changing winds.

The popularity of the gaff rig began to wane in the late 19th and early 20th centuries as advances in sailcloth, rigging materials, and mast construction led to a rise in the popularity of the Bermuda rig.

Triangular Bermuda sails are more efficient when sailing close to the wind and require fewer spars and rigging components. As racing and yacht design evolved, the simpler modern rig became the top choice for most new vessels.

These days, the gaff rig is an important part of maritime heritage and is still used on traditional sailing craft, restored historic vessels, and classic yachts.

Rigging a gaff sail

To rig a gaff sail, you’ll need:

• Mast
• Boom
• Gaff
• Sail
• Throat halyard
• Peak halyard
• Sheets
• Blocks and fittings

Here’s a step-by-step guide on how to do it.

1. Attach the sail to the mast

The first step of rigging a gaff sail involves securing the luff of the sail and checking the alignment and attachment points.

2. Connect the gaff

Position the gaff jaws around the mast and attach the sail head to the gaff.

3. Rig the throat halyard

The throat halyard raises and supports the forward end of the gaff. Proper adjustment helps to maintain an efficient sail profile and ensures the gaff remains correctly aligned with the mast during sailing.

4. Rig the peak halyard

The peak halyard raises and controls the aft end of the gaff. Sailors use it to adjust the sail's shape, reducing sag and ensuring the gaff sail sets efficiently in varying wind conditions.

5. Attach the boom and sheets

Connect the boom to the sail's foot and secure the sheets correctly.

6. Hoist and trim the sail

Raise the throat halyard followed by the peak halyard and fine-tune the sail shape. Be sure to carry out safety checks before sailing.

Common mistakes during gaff sail rigging

Common mistakes to avoid include:

• Peaking too high or too low
• Uneven halyard tension
• Twisting the sail
• Poor gaff alignment

Gaff sail vs modern sail

So, what’s the difference between a gaff sail and a modern sail? It all comes down to:

• Sail shape: A gaff sail has four sides, and a Bermuda sail is triangular
• Mast height: Gaff rigs have lower mast requirements than modern rigs
• Sail handling: A gaff rig has more lines and controls than the simpler setup found on a modern sailboat
• Performance: Bermuda rigs generally perform better than gaff rigs when sailing upwind, as their taller, aerodynamic sail produces less drag

Advantages of a gaff rig

Gaff rigs have a number of advantages, including:

• The large sail area on a short mast reduces mast stresses
• Easier maintenance and construction with simpler spars and lower construction costs
• A traditional aesthetic that’s popular with heritage vessel owners
• Excellent downwind performance

Gaff-rigged boats are best for traditional boat enthusiasts, heritage vessel owners, and coastal cruising sailors. Modern rigs are a better option for competitive racing and frequent upwind sailing.

To learn more about the parts of a yacht, discover what a boat gunwale is and read about the different types of boat decking.

Rigging a gaff sail FAQs

How difficult is it to rig a gaff sail?

Rigging a gaff sail is harder than rigging a modern Bermuda sail, as it requires extra spars and control lines, including the throat and peak halyards. However, with a basic understanding of the rig's components and setup, most sailors can quickly learn how to rig a gaff sail.

Why were gaff rigs so popular?

Gaff rigs became popular as they allowed boats to carry a large sail area without requiring extremely tall masts. This made them practical for fishing vessels, cargo boats, and coastal crafts that needed power, versatility, and lower costs.

Are gaff-rigged boats slower than modern sailboats?

Modern Bermuda rigged boats typically perform better when sailing upwind, while gaff rigged boats can be more effective on reaches and downwind courses. Their overall speed depends on hull design, sail condition, and the weather.

What are the advantages of a gaff rig?

The main advantages of a gaff rig include a large sail area on a relatively short mast, excellent downwind performance, and traditional aesthetics. Many sailors like the distinctive character and historical appeal of gaff-rigged vessels.
